Until now I could outsmart the automatically generated html code for the input fields of type checkbox or radio like that:

Code: Select all

<div class="col-xs-12">
   <cms:input type="radio" name="gebaeudetyp" opt_values="" id="gebaeudetyp" class="ignore" />
   <div class="row g_div">
      <div class="col-xs-6 col-sm-3">
         <input id="gebaeudetyp0" type="radio" name="gebaeudetyp" value="Privathaus" />
         <label for="gebaeudetyp0" class="g_label"><img src="<cms:show k_site_link />/media/image/generator/gebaeudetyp_privat_1.jpg" class="g_image"><h4 class="g_image_label">Privathaus</h4></label>
      </div>
      <div class="col-xs-6 col-sm-3">
         <input id="gebaeudetyp1" type="radio" name="gebaeudetyp" value="Stockwerk-Eigentum" />
         <label for="gebaeudetyp1" class="g_label"><img src="<cms:show k_site_link />/media/image/generator/gebaeudetyp_stockwerk_2.jpg" class="g_image" alt=""><h4 class="g_image_label">Wohnung</h4></label>
      </div>
      <div class="col-xs-6 col-sm-3">
         <input id="gebaeudetyp2" type="radio" name="gebaeudetyp" value="Gewerbeobjekt" />
         <label for="gebaeudetyp2" class="g_label"><img src="<cms:show k_site_link />/media/image/generator/gebaeudetyp_gewerbe_3.jpg" class="g_image" alt=""><h4 class="g_image_label">Gewerbeobjekt</h4></label>
      </div>
      <div class="col-xs-6 col-sm-3">
         <input id="gebaeudetyp3" type="radio" name="gebaeudetyp" value="Anderes" />
         <label for="gebaeudetyp3" class="g_label"><img src="<cms:show k_site_link />/media/image/generator/weiss_nicht.jpg" class="g_image" alt=""><h4 class="g_image_label">Anderes</h4></label>
      </div>
   </div>
</div>

This worked because I simulated the output of the input tag as if I used opt_values="... | ... | ...", but actually leaving this option enpty: opt_values="".

Now I want to store the form in the db with DataBound Forms, not only send an e-mail. Unfortunately this is no longer possible, since either CouchCMS produces the input fields itself, or they are not stored.

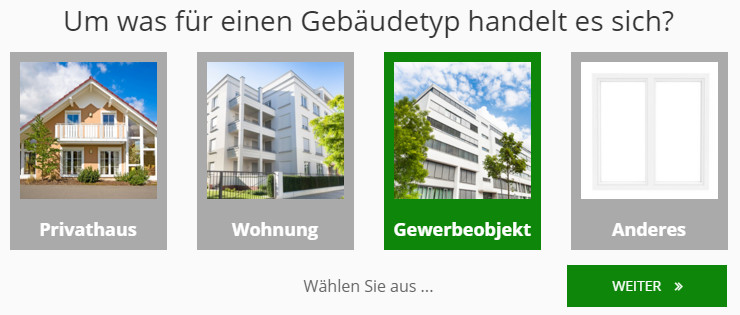

Is there a Hack of CouchCMS that prevents Couch from generating the Code? I have specially styled checkbox and radio inputs that look like the attached image. It is not possible to use the generated code from Couch.

[KK]

The workaround would be to use *both* Couch inputs and HTML inputs together as shown here -
viewtopic.php?p=20156#p20156

Hope it helps.

Thanks for the tip!

I found another solution, based on http://www.couchcms.com/forum/viewtopic.php?f=4&t=8047. Based on the following definition of the editable:

Code: Select all

<cms:template title='Requests' executable='0' clonable='1'>
   <cms:editable type='checkbox' name='schwerpunkt' label='Schwerpunkt' required='0' opt_values='Energieeffizienz | Einbruchsicherheit | Schallschutz | Weiss nicht' />
</cms:template>

The form looks as follows:

Code: Select all

<cms:form
   masterpage='requests.php'
   mode='create'
   enctype='multipart/form-data'
   method='post'
   anchor='0'
   role='form'
   >
   <cms:if k_success >
      <cms:db_persist_form
         _invalidate_cache='0'
         schwerpunkt=frm_schwerpunkt
         _auto_title='1'
      />
   </cms:if>

   <cms:input type="checkbox" name="schwerpunkt" opt_values="" id="schwerpunkt" class="ignore" />
   <div class="row">
      <div class="col-xs-3">
         <input id="schwerpunkt0" type="checkbox" name="schwerpunkt[]" value="Energieeffizienz" />
         <label for="schwerpunkt0"><img src="angebotsschwerpunkt_1.jpg"><h4>Energieeffizienz</h4></label>
      </div>
      <div class="col-xs-3">
         <input id="schwerpunkt1" type="checkbox" name="schwerpunkt[]" value="Einbruchsicherheit" />
         <label for="schwerpunkt1"><img src="angebotsschwerpunkt_2.jpg"><h4>Einbruchschutz</h4></label>
      </div>
      <div class="col-xs-3">
         <input id="schwerpunkt2" type="checkbox" name="schwerpunkt[]" value="Schallschutz" />
         <label for="schwerpunkt2"><img src="angebotsschwerpunkt_3.jpg"><h4>Schallschutz</h4></label>
      </div>
      <div class="col-xs-3">
         <input id="schwerpunkt3" type="checkbox" name="schwerpunkt[]" value="Weiss nicht" />
         <label for="schwerpunkt3"><img src="weiss_nicht.jpg"><h4>Weiss nicht</h4></label>
      </div>
   </div>

   <input type="submit" id="submit-button">

</cms:form>

The essential part ist the assignment of the form variable frm_schwerpunkt to the variable schwerpunkt in the template:

Code: Select all

<cms:db_persist_form
   ...
   schwerpunkt=frm_schwerpunkt
   ...
/>
