Hello Couchies,

I am trying to generate a JSON output using the following code:
Code: Select all
<?php require_once( '../couch/cms.php' ); ?>
<cms:content_type 'application/json'/>
{
   "notices" :
   [
      <cms:pages masterpage='add-notices.php'>
      {
            "noticesId" : "<cms:addslashes><cms:show k_page_id /></cms:addslashes>",
            "noticesImage" :  "<cms:addslashes><cms:show notices_image /></cms:addslashes>",
            "noticesTitle" :  "<cms:addslashes><cms:show notices_title /></cms:addslashes>",
            "noticesContent" :  "<cms:addslashes><cms:show notices_content /></cms:addslashes>",
            "noticesDate" :  "<cms:addslashes><cms:show notices_date /></cms:addslashes>"
      }<cms:if "<cms:not k_paginated_bottom/>">,</cms:if>
      </cms:pages>
   ]
}
<?php COUCH::invoke(); ?>


The code can be seen in action here.

I have the editable regions defined in a template (named, add-notices.php, which is a databound form) as:
Code: Select all
<cms:template title='Add Notice' order='7' clonable='1'>
   <cms:editable name='notices_image' label='Image' type='securefile' show_preview='1' thumb_width='150' use_thumb_for_preview='1' allowed_ext='png, jpg, jpeg' order='1' />
   <cms:editable name='notices_title' label='Notice Title' required='1' type='text' order='2' />
   <cms:editable name='notices_content' label='Notice Content' required='1' type='textarea' order='3' />
   <cms:editable name='notices_date' label='Notice Date' validator='exact_len=10' required='1' type='text' order='4' />
</cms:template>


The Issue is:
I am getting the "noticesImage" as a blank. whereas i want to output the entire URL of the image under both circumstances:
1. when the image is in the default location of couchc (/couch/uploads/attachments/ImageName.jpg)
2. when the define( 'K_UPLOAD_DIR', 'uploads' ) is activated in config and the default image upload folder is user defined.

Please comment :idea:

Regards,
GenXCoders
where innovation meets technology
type='securefile' should be handled accordingly. It will never output direct url on server. There is a way to hack it, but better use
Code: Select all
<cms:show_securefile 'notices_image' ><cms:cloak_url link=file_id /></cms:show_securefile>
@trendoman

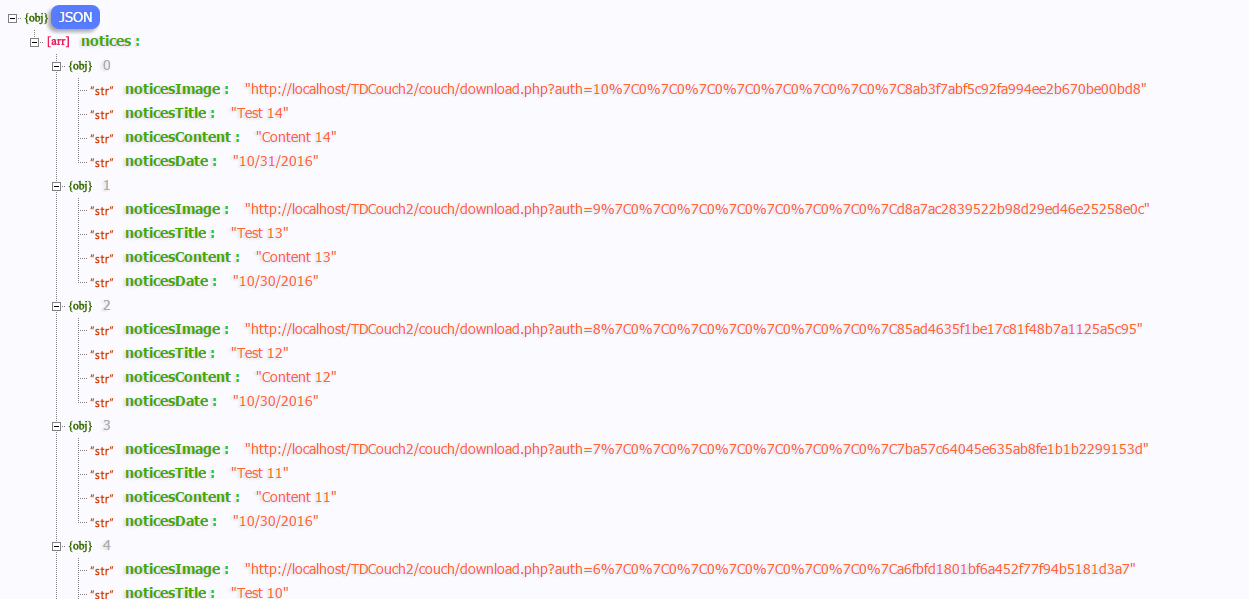

Thanks for the reply. It has brought the link in the JSON. Great hack!!! :D

But I am generating the JSON for being accessed from an Android Application. In the Android part, I will need the file to have a name of the image with the .jpg/.jpeg/.png extension appended. Howto achieve that?

Nevertheless, this reply link is already into my bookmarks for future reference.

Regards,
Aashish
where innovation meets technology
I am trying something like this code below:

Code: Select all
<?php require_once( '../couch/cms.php' ); ?>
<cms:content_type 'application/json'/>
   <cms:php>
   $arr=array(
   </cms:php>
   <cms:pages masterpage='add-notices.php'>
      "noticess" =>
      "<cms:show notices_title />"
   </cms:pages>
   <cms:php>
   );
   </cms:php>

<cms:show notices />

   <cms:php>

      $response['noticesTitle'] = $arr;

      $fp = fopen('notices-search.json', 'w');
      fwrite($fp, json_encode($response));
      fclose($fp);
   </cms:php>


<?php COUCH::invoke(); ?>


What i am trying to do is that i should be able to generate the output using cms:pages tag and then doing a json_encode on it. And then store the json_encode result in a file.

The expected json_encode result should be like:
Code: Select all
[
    {
        "noticesTitle": "Notice 1"
    },
    {
        "noticesTitle": "Notice 2"
    },
    {
        "noticesTitle": "Notice 3"
    }
]


But all i am getting is:
Code: Select all
{"noticesTitle":null}


The BRACKETS are missing. Also, the values using the cms:pages is not being fetched.
I know i am going wrong somewhere in using the the cms:php tag.

If you see the code:
Code: Select all
<cms:php>
   $arr=array(
   </cms:php>
   <cms:pages masterpage='add-notices.php'>
      "noticess" =>
      "<cms:show notices_title />"
   </cms:pages>
   <cms:php>
   );
   </cms:php>

I am trying to create an variable which stores an array using PHP and passing the cms:pages tag fetched values to it and then closing the array using the part:
Code: Select all
<cms:php>
   );
   </cms:php>


But it aint working as i am expecting it to... That definitely means that i am doing a lot wrong.

Please comment!
where innovation meets technology
To show securefile file name and extention try this:
Code: Select all
<cms:show_securefile 'notices_image'>
   <cms:dump />
</cms:show_securefile>

You will see file_ext and file_name variables.

Now, to get this result:
Code: Select all
[
    {
        "noticesTitle": "Notice 1"
    },
    {
        "noticesTitle": "Notice 2"
    },
    {
        "noticesTitle": "Notice 3"
    }
]


Try the following code sample:
Code: Select all
<cms:capture into='json_output' >

    <cms:pages masterpage='add-notices.php' >

        <cms:if k_paginated_top>
        [
        </cms:if

        {
            "noticesTitle": "<cms:show notices_title />"
        }

        <cms:if k_paginated_bottom = '0' >
        ,
        </cms:if>


        <cms:if k_paginated_bottom>
        [
        </cms:if

    </cms:pages>

</cms:capture>



Output of couch code can be passed directly to php without array like this:
Code: Select all
   <cms:php>

      $fp = fopen('notices-search.json', 'w');
      fwrite($fp, '<cms:show json_output />');
      fclose($fp);

   </cms:php>
Another hidden gem, in case you need to find exact path to file and cloak_url doesn't help:
[Get full real path of securefile editable] https://www.couchcms.com/forum/viewtopi ... 417#p25598
@Anton,

Brother it solves all the JSON stuff for the "noticeTitle". GR8!!! :D Thats the first JSON that I was looking for.

Now coming back to the securefile JSON problem:

As you said
Another hidden gem, in case you need to find exact path to file and cloak_url doesn't help:


Well a two part answer/query:
1. used the dump tag and was able to see the file_name parameter. But using the code:
Code: Select all
<cms:show_securefile 'notices_image' ><cms:cloak_url link=file_name /></cms:show_securefile>

I get the output as:
Code: Select all
"noticesImage": "http://localhost/TDCouch2/couch/download.php?auth=R3ZwPgNf55Gbba4789etbdao4w%3D%3D%7CemcefE12nE8iPbuAkDz16OkaQ5e8Nhgw%7C0%7C0%7C0%7C0%7C0%7C0%7Cac619555228b0fff0632dc06da98b3cf"

so cloak_url ain't solving the problem.

2.You got it right, I want the entire absolute path of the image uploaded through securefile, so that I can putput it into JSON. But am unable to comprehend where to apply what.

As a head start to use the hidden gem (great work on that), I am having the template named 'add-notices.php' with a databound form, which is coded as:
Code: Select all
<?php require_once( 'couch/cms.php' ); ?>
<cms:template title='Add Notice' order='7' clonable='1'>
   <cms:editable name='notices_image' label='Image' type='securefile' show_preview='1' thumb_width='150' use_thumb_for_preview='1' allowed_ext='png, jpg, jpeg' order='1' />
   <cms:editable name='notices_title' label='Notice Title' required='1' type='text' order='2' />
   <cms:editable name='notices_content' label='Notice Content' required='1' type='textarea' order='3' />
   <cms:editable name='notices_date' label='Notice Date' validator='exact_len=10' required='1' type='text' order='4' />
</cms:template>

<cms:if k_user_access_level ge '10' >
<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8">
      <meta http-equiv="X-UA-Compatible" content="IE=edge">
      <title>TDirectory - Add Notice</title>
      <meta content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" name="viewport">
      <link rel="stylesheet" href="bootstrap/css/bootstrap.min.css">
      <link rel="stylesheet" href="genxcoders-custom/css/font-awesome.min.css" />
      <!--<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/ionicons/2.0.1/css/ionicons.min.css">-->
      <link rel="stylesheet" href="dist/css/AdminLTE.min.css">
      <link rel="stylesheet" href="dist/css/skins/skin-blue.min.css">
          <link rel="stylesheet" href="genxcoders-custom/genxcoders.css">
          <link rel="stylesheet" href="plugins/datepicker/datepicker3.css">
          <!-- HTML5 Shim and Respond.js IE8 support of HTML5 elements and media queries -->
          <!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
          <!--[if lt IE 9]>
          <script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
          <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
          <![endif]-->
   </head>
   <body class="hold-transition skin-blue sidebar-mini">
      <div class="wrapper">
         <!-- Main Header -->
         <header class="main-header">
            <!-- Logo -->
            <a href="index2.html" class="logo">
               <!-- mini logo for sidebar mini 50x50 pixels -->
               <span class="logo-mini"><b>T</b>D</span>
               <!-- logo for regular state and mobile devices -->
               <span class="logo-lg"><b>T</b>Directory</span>
            </a>
            <!-- Header Navbar -->
            <nav class="navbar navbar-static-top" role="navigation">
               <!-- Sidebar toggle button-->
               <a href="#" class="sidebar-toggle" data-toggle="offcanvas" role="button">
                  <span class="sr-only">Toggle navigation</span>
               </a>
               <!-- Navbar Right Menu -->
               <div class="navbar-custom-menu">
                  <ul class="nav navbar-nav">
                     <!-- User Account Menu -->
                     <li class="dropdown user user-menu">
                        <!-- Menu Toggle Button -->
                        <a href="#" class="dropdown-toggle" data-toggle="dropdown">
                           <!-- The user image in the navbar-->
                           <img src="dist/img/TDirectoryLogo.png" class="user-image" alt="User Image">
                           <!-- hidden-xs hides the username on small devices so only the image appears. -->
                           <span class="hidden-xs">aashish@genxcoders.in</span>
                        </a>
                        <ul class="dropdown-menu">
                           <!-- The user image in the menu -->
                           <li class="user-header">
                              <img src="dist/img/TDirectoryLogo.png" class="img-circle" alt="User Image">
                              <p>
                                 aashish@genxcoders.in
                                 <small>Account Validity: OCT 2016</small>
                              </p>
                           </li>
                           <!-- Menu Footer-->
                           <li class="user-footer">
                              <div class="pull-left">
                                 <a href="#" class="btn btn-default btn-flat"><i class="fa fa-user-secret"></i> Profile</a>
                              </div>
                              <div class="pull-right">
                                 <a href="#" class="btn btn-default btn-flat"><i class="fa fa-sign-out"></i> Logout</a>
                              </div>
                           </li>
                        </ul>
                     </li>
                                   <!-- Logout Button -->
                     <!--<li>
                        <a href="#" data-toggle="control-sidebar" alt="Logout"><i class="fa fa-sign-out"></i></a>
                     </li>-->
                  </ul>
               </div>
            </nav>
         </header>
         <!-- Left side column. contains the logo and sidebar -->
         <aside class="main-sidebar">
            <!-- sidebar: style can be found in sidebar.less -->
            <section class="sidebar">
               <!-- Sidebar user panel (optional) -->
               <div class="user-panel">
                  <div class="pull-left image">
                     <img src="dist/img/TDirectoryLogo.png" class="img-circle" alt="User Image">
                  </div>
                  <div class="pull-left info">
                     <p>aashish@genxcoders.in</p>
                     <!-- Status -->
                     <a><!--<i class="fa fa-circle text-success"></i>--> <div id="date-display" class="white-text pull-left"></div></a>
                  </div>
               </div>
               <!-- search form (Optional) -->
               <!--<form action="#" method="get" class="sidebar-form">
                  <div class="input-group">
                     <input type="text" name="q" class="form-control" placeholder="Search...">
                     <span class="input-group-btn">
                        <button type="submit" name="search" id="search-btn" class="btn btn-flat"><i class="fa fa-search"></i></button>
                     </span>
                  </div>
               </form>-->
               <!-- /.search form -->
               <!-- Sidebar Menu -->
               <ul class="sidebar-menu">
                  <li class="header">MAIN NAVIGATION</li>
                  <!-- Optionally, you can add icons to the links -->
                  <li><a href="index.html"><i class="fa fa-dashboard"></i> <span>Dashboard</span></a></li>
                  <li class="treeview">
                     <a href="#">
                        <i class="fa fa-dashboard"></i> <span>Department</span>
                        <span class="pull-right-container">
                           <i class="fa fa-angle-right pull-right"></i>
                        </span>
                     </a>
                     <ul class="treeview-menu">
                        <li class="active"><a href="index.html"><i class="fa fa-eye"></i> View All</a></li>
                        <li><a href="index2.html"><i class="fa fa-plus"></i> Add Department</a></li>
                     </ul>
                  </li>
                  <li class="treeview">
                     <a href="#">
                        <i class="fa fa-dashboard"></i> <span>Employees/ Members List</span>
                        <span class="pull-right-container">
                           <i class="fa fa-angle-right pull-right"></i>
                        </span>
                     </a>
                     <ul class="treeview-menu">
                        <li class="active"><a href="index.html"><i class="fa fa-eye"></i> View All</a></li>
                        <li><a href="index2.html"><i class="fa fa-plus"></i> Add Employee/ Member</a></li>
                     </ul>
                  </li>
                  <li class="treeview active">
                     <a href="#">
                        <i class="fa fa-dashboard"></i> <span>Notices</span>
                        <span class="pull-right-container">
                           <i class="fa fa-angle-right pull-right"></i>
                        </span>
                     </a>
                     <ul class="treeview-menu">
                        <li><a href="notices.html"><i class="fa fa-eye"></i> View All</a></li>
                        <li class="active"><a href="add-notices.html"><i class="fa fa-plus"></i> Add Notice</a></li>
                     </ul>
                  </li>
                  <li><a href="profile.html"><i class="fa fa-user-secret"></i> <span>Profile Settings</span></a></li>
               </ul><!-- /.sidebar-menu -->
            </section><!-- /.sidebar -->
         </aside>

         <!-- Content Wrapper. Contains page content -->
         <div class="content-wrapper">

            <!-- Content Header (Page header) -->
            <section class="content-header">
               <h1>
                  Add Notice
                  <small>Add and Send Notice to all Employees/ Members</small>
               </h1>
            </section>
            <!-- Main content -->
            <section class="content">

               <div class="box box-primary">
                  <div class="box-header">
                     <!-- Form to Add Notice -->
                     <cms:set submit_success="<cms:get_flash 'submit_success' />" />

                     <cms:form
                        masterpage=k_template_name
                        mode='create'
                        enctype='multipart/form-data'
                        method='post'
                        anchor='0'
                     >
                        <!-- Success -->
                        <cms:if k_success >
                              <cms:db_persist_form
                                 _invalidate_cache='0'
                                 _auto_title='1'
                              />
                              <cms:if k_success >
                                 <cms:set_flash name='submit_success' value='1' />
                                 <div class="alert alert-success" role="alert" data-dismiss="alert">
                                    <button class="close" type="button" data-dismiss="alert" aria-label="Close">
                                       <span aria-hidden="true">×</span>
                                    </button>
                                    Notice has been sent successfully :)
                                    <br>
                                 </div>
                                 <cms:redirect 'notices.html' />
                              </cms:if>
                        </cms:if>
                        <!-- Success -->

                        <!-- Failure -->
                        <cms:if k_error >
                           <div class="alert alert-danger" role="alert">
                              <button class="close" type="button" data-dismiss="alert" aria-label="Close">
                                 <span aria-hidden="true">×</span>
                              </button>
                              Oops! The following problems were encountered :(
                              <br>
                              <div class="error">
                                 <cms:each k_error >
                                 <br><cms:show item />
                                 </cms:each>
                              </div>
                           </div>
                        </cms:if>
                        <!-- Failure -->

                     </div>

                     <div class="box-body">
                        <div class="col-md-3">
                           Image Attachment
                        </div>
                        <div class="col-md-9">
                           <!--<img id="blah" src="#" />
                           <input type='file' onchange="readURL(this);" />-->
                           <img id="f_notices_image" src="#" style="width: 25%; margin:  10px auto; display: block;"/>
                           <cms:input name="notices_image" type="bound" onchange="readURL(this);" trust_mode='1' />
                           <div style="padding-top: 10px;"></div>
                        </div>
                        <div class="col-md-3">
                           Notice Title *
                        </div>
                        <div class="col-md-9">
                           <cms:input name="notices_title" type="bound" style="width: 100%;" />
                           <div style="padding-top: 10px;"></div>
                        </div>
                        <div class="col-md-3">
                           Notice Content *
                           <div style="padding-top: 10px;"></div>
                        </div>
                        <div class="col-md-9">
                           <cms:input type="bound" name="notices_content" style="width: 100%;" cols="" rows="5"></cms:input>
                           <div style="padding-top: 10px;"></div>
                        </div>
                        <div class="col-md-3">
                           Notice Date *
                           <div style="padding-top: 10px;"></div>
                        </div>
                        <div class="col-md-9">
                           <div class="input-group date">
                              <div class="input-group-addon">
                                 <i class="fa fa-calendar"></i>
                              </div>
                              <cms:input name='notices_date' type="bound" class="form-control pull-right" id="f_notices_date" />
                           </div>
                           <div style="padding-top: 10px;"></div>
                        </div>
                     </div>

                     <div class="box-footer">
                        <div class="col-md-9">&nbsp;</div>
                        <div class="col-md-3">
                           <cms:if "<cms:not submit_success />" >
                           <button type="submit" class="btn btn-success">Send Notice</button>
                           </cms:if>
                           <button type="button" class="btn btn-default" data-dismiss="modal">Cancel</button>
                        </div>
                     </div>
                  </cms:form>
                  <!-- Form to Add Notice -->

               </div>

            </section>
            <!-- /.content -->
         </div>
         <!-- /.content-wrapper -->

         <!-- Main Footer -->
         <footer class="main-footer">
            <!-- To the right -->
            <div class="pull-right hidden-xs">
               Secured Intra-Organization Communication Application
            </div>
            <!-- Default to the left -->
            <strong>Copyright &copy; 2016 - 2017 <a href="http://www.tdirectory.in/">TDirectory</a> by <a href="http://www.genxcoders.in/">GenXCoders</a>.</strong> All rights reserved.
         </footer>
      </div><!-- ./wrapper -->
      <!-- REQUIRED JS SCRIPTS -->
      <script src="plugins/jQuery/jquery-2.2.3.min.js"></script>
      <script src="bootstrap/js/bootstrap.min.js"></script>
      <script src="dist/js/app.min.js"></script>
                <script src="genxcoders-custom/typeahead.bundle.js"></script>
      <script src="plugins/datepicker/bootstrap-datepicker.js"></script>
                <script>
         var nbaTeams = new Bloodhound({
            datumTokenizer: Bloodhound.tokenizers.obj.whitespace('team'),
            queryTokenizer: Bloodhound.tokenizers.whitespace,
            prefetch: 'https://twitter.github.io/typeahead.js/data/nba.json'
         });
         var nhlTeams = new Bloodhound({
            datumTokenizer: Bloodhound.tokenizers.obj.whitespace('team'),
            queryTokenizer: Bloodhound.tokenizers.whitespace,
            prefetch: 'https://twitter.github.io/typeahead.js/data/nhl.json'
         });

         $('#multiple-datasets .typeahead').typeahead({
            highlight: true
         },
         {
            name: 'nba-teams',
            display: 'team',
            source: nbaTeams,
            templates: {
               header: '<h3 class="league-name">Departments</h3>'
            }
         },
         {
            name: 'nhl-teams',
            display: 'team',
            source: nhlTeams,
            templates: {
               header: '<h3 class="league-name">Members</h3>'
            }
         });
         //Notice Image Thumbnail Generation
         function readURL(input) {
         if (input.files && input.files[0]) {
            var reader = new FileReader();
            reader.onload = function (e) {
               $('#f_notices_image')
                  .attr('src', e.target.result)
               };
            reader.readAsDataURL(input.files[0]);
            }
         }
         //Date picker
         $('#f_notices_date').datepicker({
            autoclose: true
         });
         <!-- Date Display -->
         var dt = new Date();
         document.getElementById("date-display").innerHTML = dt.toDateString();
      </script>
   </body>
</html>
<cms:else />
   <cms:redirect 'couch/login.php' />
</cms:if>
<?php COUCH::invoke(); ?>


And from this i need to generate a JSON file which will actually need to provide the output as:
Code: Select all
{
    "notices": [
        {
            "noticesImage": "http://localhost/TDCouch2/couch/download.php?auth=R3ZwPgNf55Gbba4789etbdao4w%3D%3D%7CemcefE12nE8iPbuAkDz16OkaQ5e8Nhgw%7C0%7C0%7C0%7C0%7C0%7C0%7Cac619555228b0fff0632dc06da98b3cf",
            "noticesTitle": "Test 14",
            "noticesContent": "Content 14",
            "noticesDate": "10/31/2016"
        },
        {
            "noticesImage": "http://localhost/TDCouch2/couch/download.php?auth=cq4Brg9OuaAQ%2F%2Baj%7CEKTpFk5owmizsIwxcHcoWbjIqukBQueE%7C0%7C0%7C0%7C0%7C0%7C0%7Cf1d92a2922d7612d8656242c2bdd3d6b",
            "noticesTitle": "Test 13",
            "noticesContent": "Content 13",
            "noticesDate": "10/30/2016"
        }
    ]
}


where the "noticesImage" needs to have the exact path of the securefile something like:
Code: Select all
"noticesImage" : "http//www.sitename.com/couch/uploads/attachments/FileName.jpg"


the above JSON that i have shown is being generated using the code, written in a file "/json/notices.php":
<?php require_once( '../couch/cms.php' ); ?>
<cms:content_type 'application/json'/>
{
"notices" :
[
<cms:pages masterpage='add-notices.php'>
{
"noticesImage" : "<cms:addslashes><cms:show_securefile 'notices_image' ><cms:cloak_url link=file_name /></cms:show_securefile></cms:addslashes>",
"noticesTitle" : "<cms:addslashes><cms:show notices_title /></cms:addslashes>",
"noticesContent" : "<cms:addslashes><cms:show notices_content /></cms:addslashes>",
"noticesDate" : "<cms:addslashes><cms:show notices_date /></cms:addslashes>"
}<cms:if "<cms:not k_paginated_bottom/>">,</cms:if>
</cms:pages>
]
}
<?php COUCH::invoke(); ?>


Where do i fit your code?
Please Comment!
where innovation meets technology
First, fix this and post if link works, because correct code is this:
Code: Select all
<cms:cloak_url link=file_id  />

If links work, then please test if json thing works in Android, because I have never seen yet that cloaked url was not loading.
If you have commas in strings, then cms:addslashes can deal with it after a little mod as in here
https://www.couchcms.com/forum/viewtopi ... 157#p24165

Also a sample of json_encode with array for some quick learning
https://www.couchcms.com/forum/viewtopi ... 358#p20084
Same thing... no change... the actual URL is not being displayed...

I have used
Code: Select all
<cms:cloak_url link=file_id  /


JSON Output is:
where innovation meets technology
18 posts Page 1 of 2
